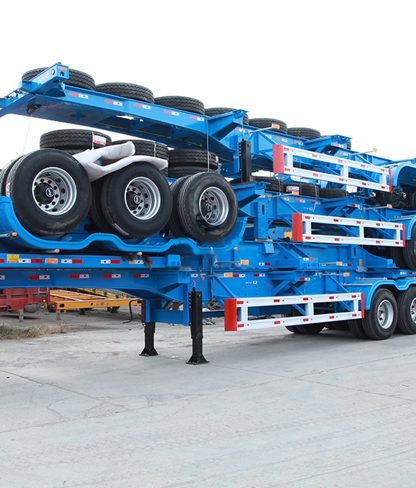

A skeleton trailer has its axles placed behind the vehicle’s center of gravity (when evenly loaded) and is equipped with a coupling device that transmits horizontal and vertical forces to the tractor.
- Loading Capacity≤ 60 ton
- Axles3 axles, 13T/16T
- Dimension12400 x 2500 x 1500 mm
Product Description
A skeleton trailer has its axles placed behind the vehicle’s center of gravity (when evenly loaded) and is equipped with a coupling device that transmits horizontal and vertical forces to the tractor.
Skeleton semi trailers are specially designed for transporting containers of various sizes. They can be reused for a long time and offer sufficient strength.
Specifications
| Dimension | 12400 x 2500 x 1500 mm |
|---|---|
| Loading Capacity | ≤ 60 ton |
| Axles | 3 axles, 13T/16T |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension or air suspension |
| Spring Leaf | 90 (W) mm x 13 (thickness) mm x 10 layers, or 100 mm x 12 mm x 12 (specially intended for overseas markets) |
| King Pin | 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | 28-ton (double-speed) |
| Main Beam | Height 500 mm; upper plate 14 mm, middle plate 8 mm, bottom plate 16 mm; material Q345B steel |
| Brake Chamber | Relay valve; T30/30+T30 spring brake chamber, 45 L air tank |
| Twist Locks | 4, 8 or 12 sets (lifting or screw type) |
| Valve | Specially intended for overseas markets |
| ABS | Optional |
| Light | LED light (specially intended for overseas markets) |
| Voltage | 24 V |
| Socket | 7-pin socket (for 7-wire harness) |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anticorrosive primer and 2 layers of top coats |
| Tool Box | 1 m x 0.5 m x 0.5 m (contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar; size can be tailored to your needs) |
| Shipping Terms | Transported by bulk carrier (RORO) or in a 40ft container |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
