The most versatile range, covering general freight, steel, building materials and farm produce. Flatbeds are simple and all-purpose; sidewall trailers use solid steel sides, some with drop-down panels; fence trailers use vertical-tube stakes for taller, lighter cargo enclosure.
10 models. Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
Flatbed
4 models01

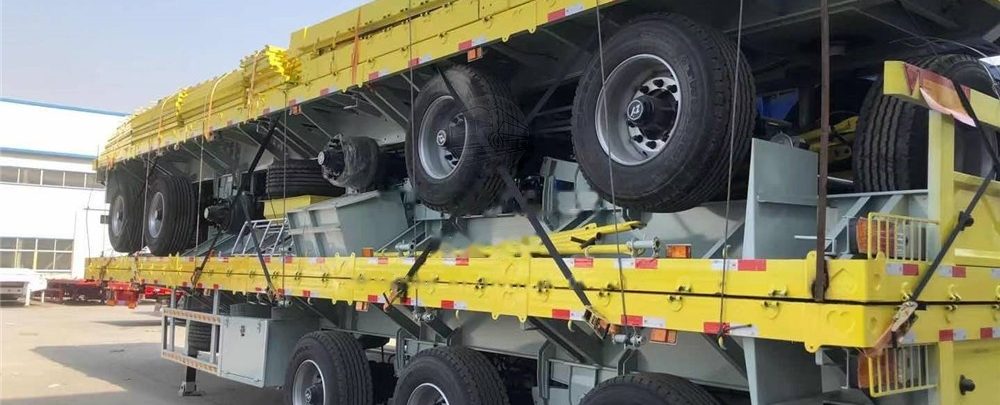

3-Axle 40ft Flatbed Semi Trailer
- Loading Capacity 30T-80T
- Axles 3 axles, 4 axles, 5 axles, 13-16T
02

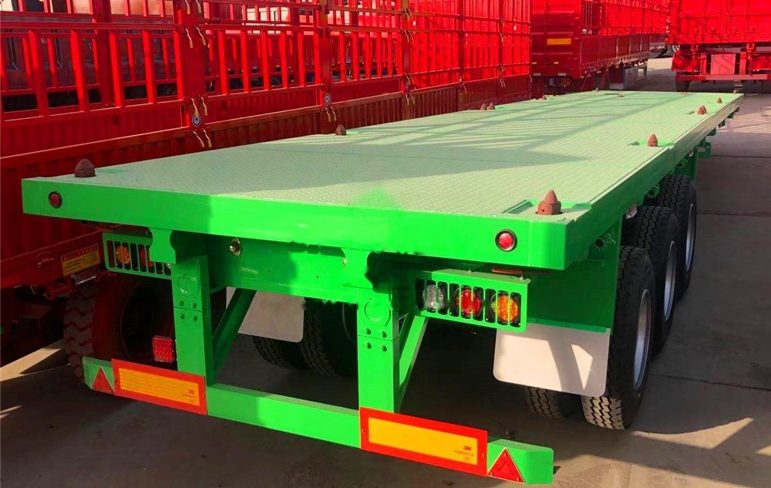

40ft Flatbed Semi Trailer
- Loading Capacity 30T-80T
- Axles 3 axles, 4 axles, 5 axles, 13-16T
03
04

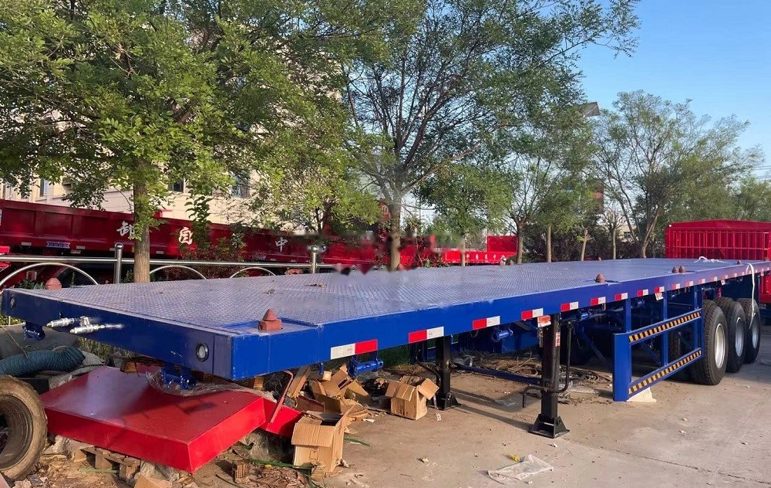

3-Axle 40ft Flatbed Semi Trailer (Model B)
- Loading Capacity 60-80T
- Overall Dimension 12500 x 2500 x 1530 mm

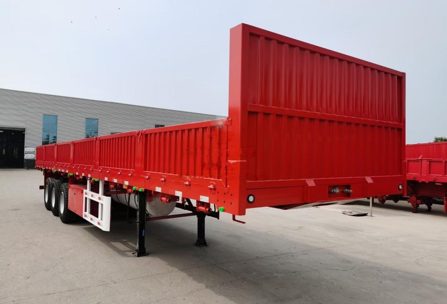

Sidewall / Drop Side
4 models05
3-Axle 40ft Side Wall Cargo Semi Trailer
- Loading Capacity 30T-80T
- Axles 3 axles, 4 axles, 5 axles, 13-16T
06

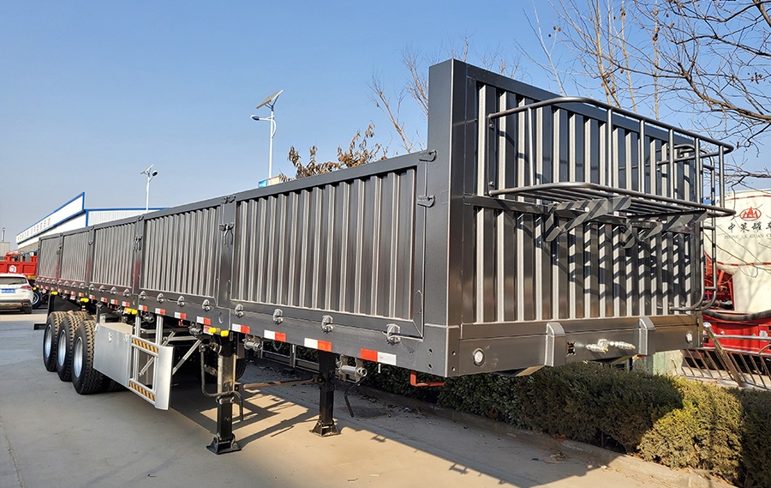

50T Drop Side Cargo Semi Trailer
- Loading Capacity 30T-80T
- Axles 3 axles, 4 axles, 5 axles, 13-16T
07

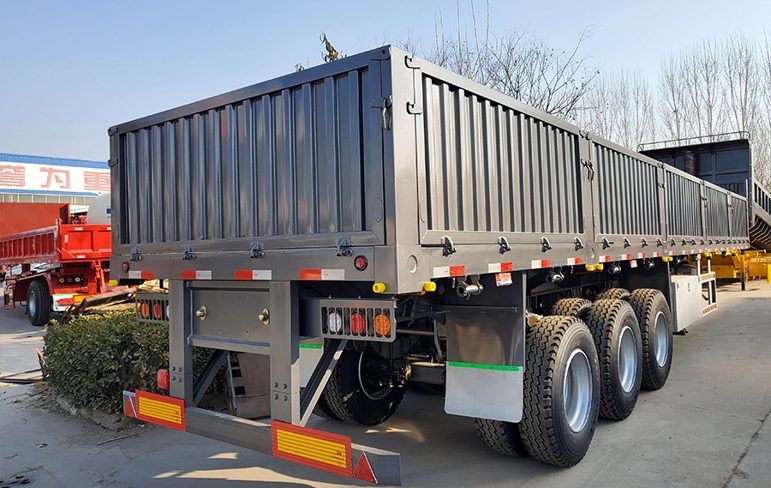

3-Axle Bulk Cargo Sidewall Semi Trailer
- Loading Capacity 30T-80T
- Axles 3 axles, 4 axles, 5 axles, 13-16T
08

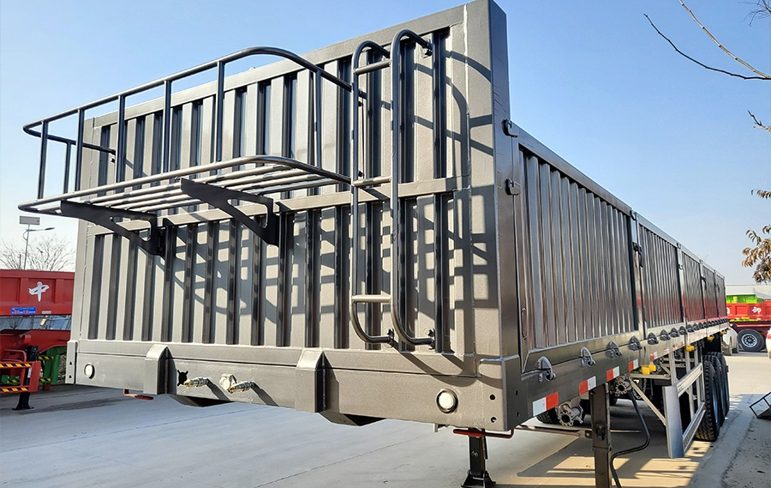

30T Heavy-Duty Drop Side Cargo Semi Trailer
- Loading Capacity 30T-80T
- Axles 3 axles, 4 axles, 5 axles, 13-16T
Fence
2 models09
10

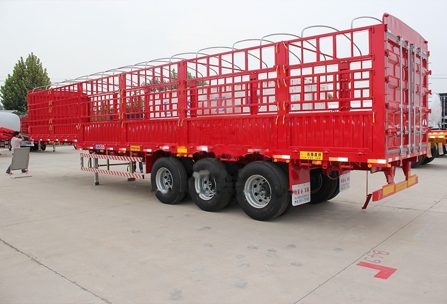

Sidewall / Drop Side vs Fence
Two different cargo-enclosure designs in the same series — choose by cargo and loading method.
| Sidewall / Drop Side | Fence | |
|---|---|---|
| Side panels | Solid steel plate or corrugated steel, closed | Vertical tubes (round or square) with 2-3 cross braces, open |
| Drop-down panels | Drop Side: three sides fold down. Side Wall: fixed (welded) | Fixed, does not fold down |
| Typical side height | 600 / 800 / 1000 / 1200 / 2000 mm | 1200 / 1400 / 1600 / 1800 mm, generally taller |
| Tare weight (3-axle 40ft) | About 7.6 T | About 7.1-7.3 T, 300-500 kg lighter |
| Centre of gravity | Slightly lower | Slightly higher with tall sides |
| Best for | Bulk goods, bagged cargo, loose materials | Grain, farm produce, light and bulky cargo |
