STANDARD LOWBED · MODEL 04-05

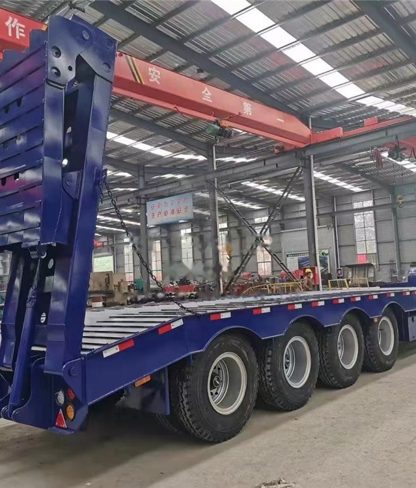

This 4-axle 80-ton low boy low loader semi trailer is widely used for transporting heavy machinery. It is built from high-strength steel, and all spare parts come from well-known brands.
- Loading Capacity80 ton
- Axles4 axles
Product Description
This 4-axle 80-ton low boy low loader semi trailer is widely used for transporting heavy machinery. It is built from high-strength steel, and all spare parts come from well-known brands.
Specifications
| Loading Capacity | 80 ton |
|---|---|
| Axles | 4 axles |
| Suspension | Mechanical or airbag suspension |
| Spring Leaf | 90 (W) mm x 13 (thickness) mm x 10 layers, or 100 mm x 12 mm x 12 (specially intended for overseas markets) |
| King Pin | 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | 28-ton (double-speed) |
| Platform | 3–5 mm checkered plate |
| Trailer Sides | 600–2000 mm, or box-type sides |
| Brake Chamber | Relay valve; T30/30+T30 spring brake chamber, 45 L air tank |
| Twist Locks | 4, 8 or 12 sets (lifting or screw type) |
| Valve | Specially intended for overseas markets |
| ABS | Optional |
| Light | LED light (specially intended for overseas markets) |
| Voltage | 24 V |
| Tool Box | 1 m x 0.5 m x 0.5 m (contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar; size can be tailored to your needs) |
| Painting | Sandblasted, anti-rust chassis surface with 1 layer of anticorrosive primer and 2 layers of top coats |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
