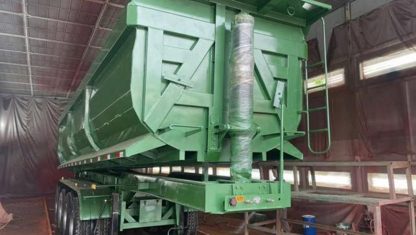

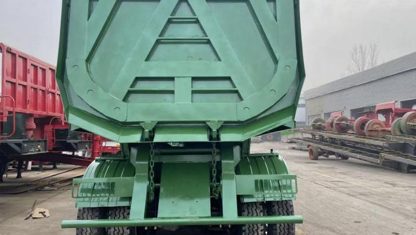

U-TYPE REAR DUMP · MODEL 01-02
To meet the requirements of clients, we designed a new type U-shape rear dump tipper now.
- Loading Capacity40T-80T
- Axle4 axles
Product Description
To meet the requirements of clients, we designed a new type U-shape rear dump tipper now.
Specifications
| Material | high strength steel |
|---|---|
| Loading Capacity | 40T-80T |
| Axle | 4 axles |
| Tire | 16 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical, Airbag suspension |
| Spring Leaf | 90 (W) mmx13 (Thickness) mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin | 2.0 or 3.5 inch (bolted or welded) |
| Landing Gear | 28tons (double-speed) |
| Bottom Side Beam | 16mm or 18mm steel channel |
| Brake Chamber | Relay valve; T30/30+T30 spring brake chamber, 45L air tank |
| Twist Locks | 4,8,12 sets (lifting or screw type) |
| Valve | Specially intended for oversea market |
| ABS | Optional |
| Light | LED light (specially intended for oversea market) |
| Voltage | 24V |
| Tool Box | 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
Specifications shown are reference configurations. Before quoting, we confirm the exact specification with you — dimensions, axle count, tyre size, kingpin size, suspension, ABS and options.
